Characteristic of Cut Knurlilng Tool

Turning external diameter cut knurling tool can adjust the cutting angle, can protect the accuracy of the machine tool, for small machine tools, rigid requirements are low.
Applicable types of machine tools: CNC lathe, automatic lathe, multi-axis lathe, Swiss automatic lathe, Lathe-milling machine tools.

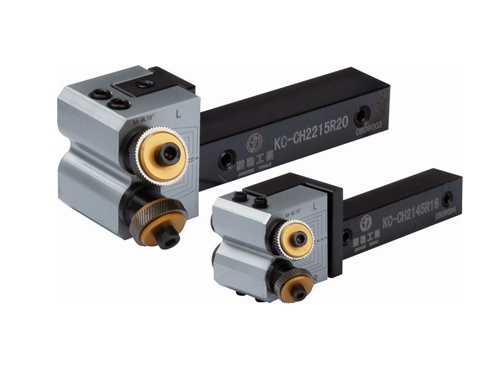

Double Wheel Cut Knurling Tool

可加工網紋，刀具可根據加工工件直徑的大小對滾輪的切削角度進行調整，同時具有中心高調節功能，可以確保雙輪同時接觸工件，避免亂花現象。

The Tool can process overlapping curve.The cuuting angle can be adjusted according to the workpiece diamater.And had center adjustment function,it can ensure the wheels work at the same time.

Knurling Type

Knurling Type		Cut Knurling Wheel	Feed Type
	RGE30°	AA+AA	F←
	RGE45°	BL15°+BR15°	F←
	RGE60°	BL30°+BR30°	F←

Imported Cut Wheel

AA	BL15°	BR15°	BL30°	BR30°

Product Data

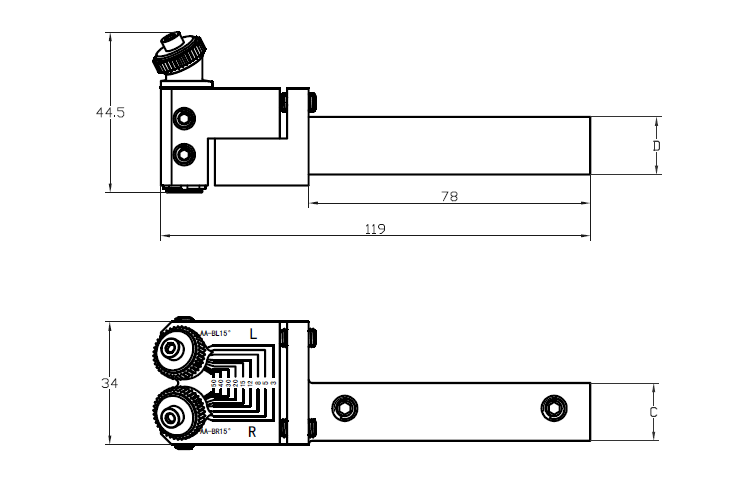

CH2145 drawing

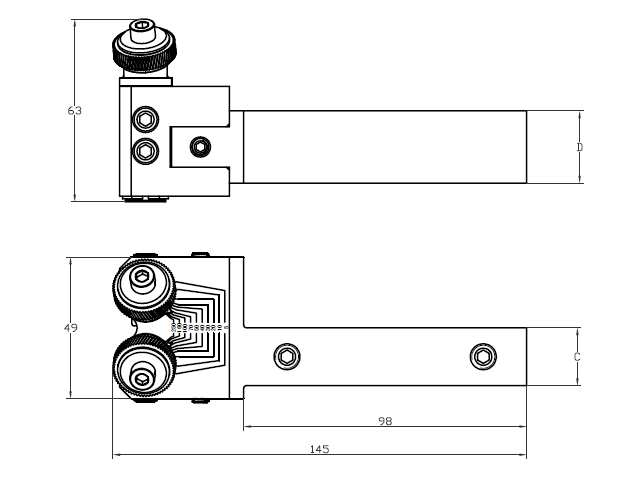

CH2215 drawing



Model	Direction	Process Range	Wheel Size	Tool Shank Size		Spare Part
				C	D
CH2145R14	R 正	φ3-50	φ14.5×3×5	14	16	EAT14.53
CH2145L14	L 反
CH2145R16	R 正			16
CH2145L16	L 反
CH2215R20	R+L  正反可調	φ5-250	φ21.5×5×8	20	25	EAT21.55
CH2215R25				25

Cut Knurling Tool Use Method

1.Install tool into tool holder and adjust tool center height to ensure center position of workpiece.

2.Adjust the wheel to the outer diameter of the workpiece and adjust the width of the two wheels to close the workpiece.

3.Start to work,fast cut 1/2 of the teeth pitch and width is about 1/3 of wheel

4.Start Z axial feed when the knuling pattern is finished.

5.If the tooth type is faulty, adjust the axial adjustment of the cutter holder.

6.Use larger cutting fluid or lubricant to remove the iron scraps
